Toshniwal’s flow meters for measurement
By OEM Update Editorial November 15, 2019 4:34 pm IST
Toshniwal, one of the pioneers in upgrading industrial technology, has launched the Oval gear flow meters and V-cone flow meters for measurement.

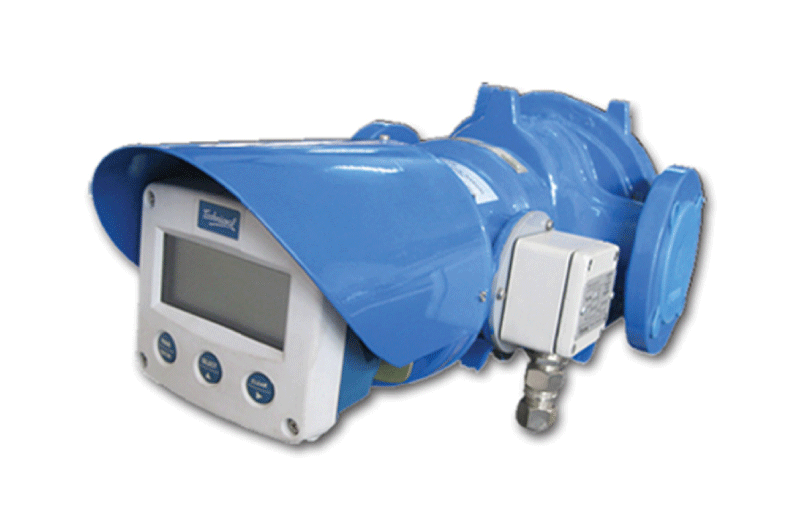

Oval gear flow meters
The Toshniwal OV and OI series flow meters are positive displacement type meters with only two moving parts (two precision oval gears). Through magnetic coupling, the revolutions can either be sensed by magnetic-field-controlled pulse generator with a digital display or through gear train with mechanical indicators.
With a wide range of materials of construction for housing, Oval gears and bearings along with specific teeth profile for Oval gears (higher viscosities) and heat extensions enable the Toshniwal’s oval gear meter to be very versatile and accurate in most fields of application.
They have been granted the Weights & Measures Certification by the Dept. of Legal Metrology and the 100ppr Pulse generators are PESO approved.
Features:
• Line Size Range: 25mm to 150mm ( 1” to 6”)
• Accuracy: Between 0.1 to 0.3 per cent (depending on range and properties of liquid)
• Models available with digital display/mechanical display/roller register/pulse generator
• Rugged and proven design for long term stability and accuracy. No wear & tear.
• Low pressure drop across meter
• Special oval gear teeth profile for liquids for viscosities above 150 mPA.s
• Lesser number of parts which makes maintenance simple.
• ATEX variants available for explosive atmospheres
• Toshniwal’s NABL certified calibration facility and experienced service engineers ensure long term commissioning of the meters
Applications:
Toshniwal’s Oval gear meters are highly versatile and can easily handle any downstream (free of particulates) liquid flow measurement with superior accuracy and reliability through proven design and quality construction. Here are a few applications that the OV & OI series are frequently used in:
• Approved and extensively used for custody transfer
• Terminal automation
• Diesel unloading
Flow meter is an advanced differential pressure instrument, which is ideal for use with liquid, steam or gas media in rugged conditions where accuracy, low maintenance and cost are important. With its DP bV-Cone is especially useful in tight-fit and retrofit installations.
Features:
• Flow meter accuracy to +/- 0.5 per cent
• Flow Meter repeatability to +/- 0.1 per cent
• Wide flow range
• Pre-conditions flow
• Requires minimal straight pipe
• Low head loss and maintenance
• No recalibration
• Long life
For Details contact:
Toshniwal Hyvac Pvt. Ltd.
267, Kilpauk Garden Road,
Chennai: 600 010.
Ph : 044 – 2644 8558 / 8983
Fax : 044 – 2644 1820
E-mail: sales@toshniwal.net
Website: www.toshniwal.net
